Cold Box Core Shooters
Z84 & Z84R Series
Z84 & Z84R Series machines for cold box core production.

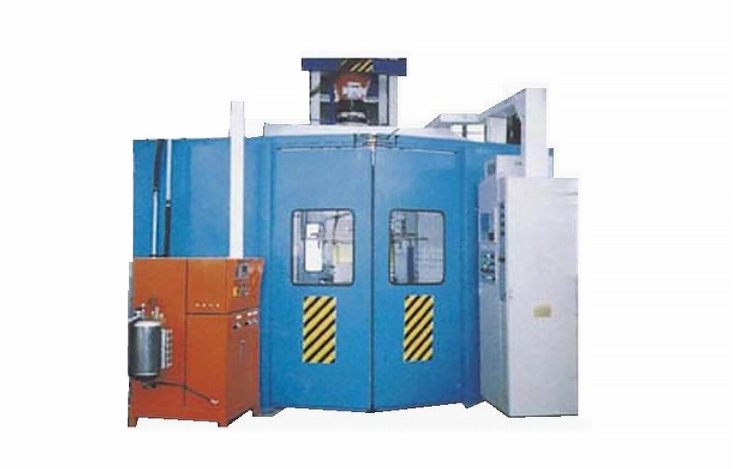

Z84 Series
Z84 Series
Designed for reliable cold box core production, this series combines a proven machine structure with flexible two-part or four-part core box configurations and a high degree of automation. A user-friendly HMI allows core-making parameters to be adjusted according to production requirements, with integrated production counting and fault diagnostics for efficient operation. The triethylamine (TEA) gas generator uses a two-stage heating system for effective amine vaporization and stable gas delivery, supporting efficient and consistent core curing.

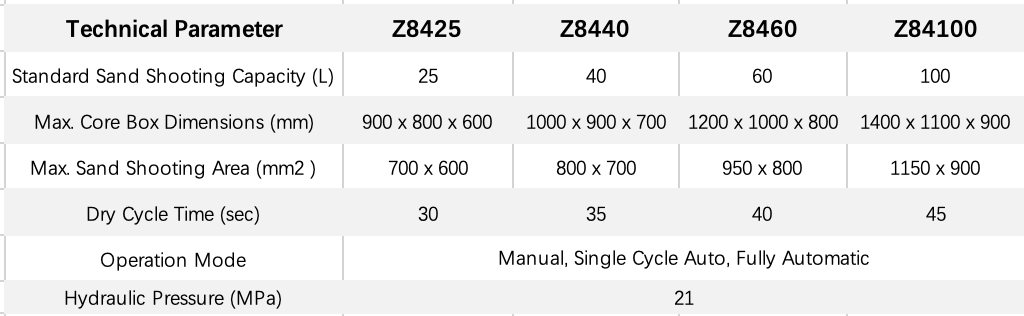

Technical Data
Z84R Series
Z84R Series
Designed for flexible and automated cold box core production, this series features a quick-change core box system that allows tooling replacement within minutes. A linerless design with automatic sand cleaning simplifies operation, while centralized exhaust gas collection supports effective handling of residual amine. The machine supports two-part and four-part core box configurations. A user-friendly HMI provides adjustable process parameters, production counting and fault diagnostics. The TEA gas generator uses a two-stage heating system for effective amine vaporization and stable gas delivery, supporting consistent and efficient core curing.

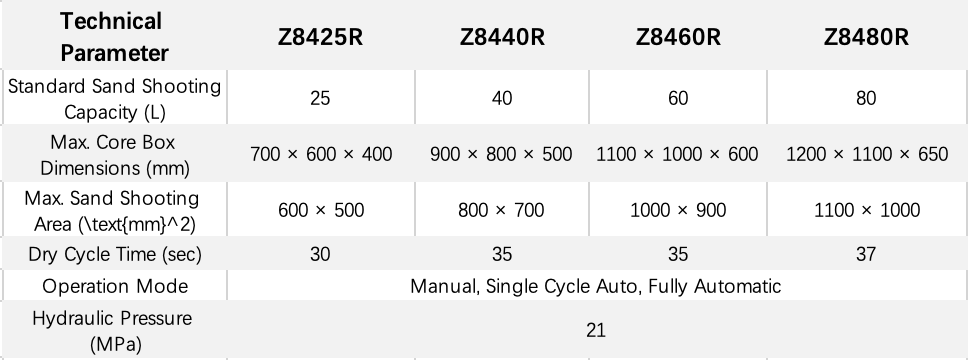

Technical Data
Need Help Selecting a Machine?
Send us your core drawing, core box dimensions and production requirements. We will help evaluate the suitable machine and configuration.
